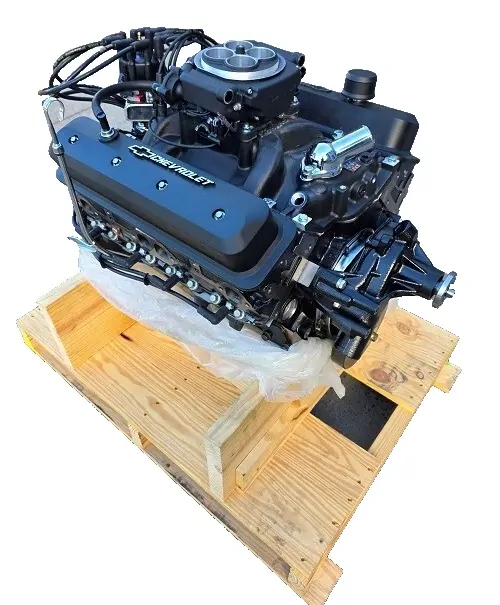

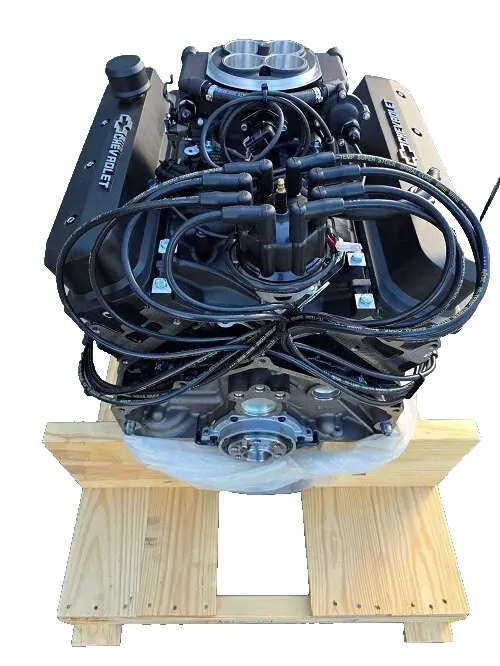

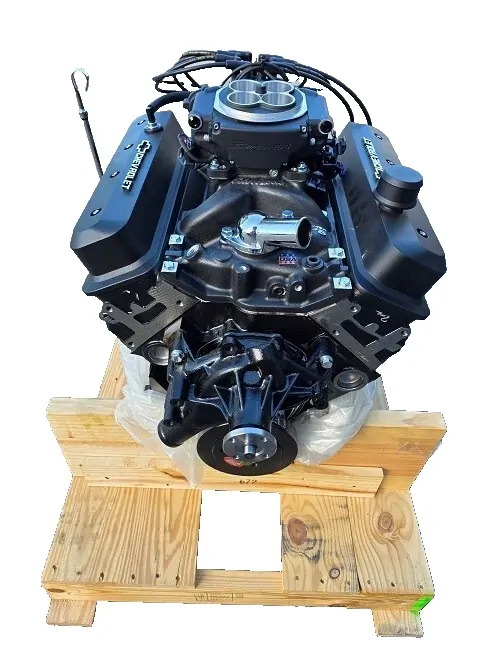

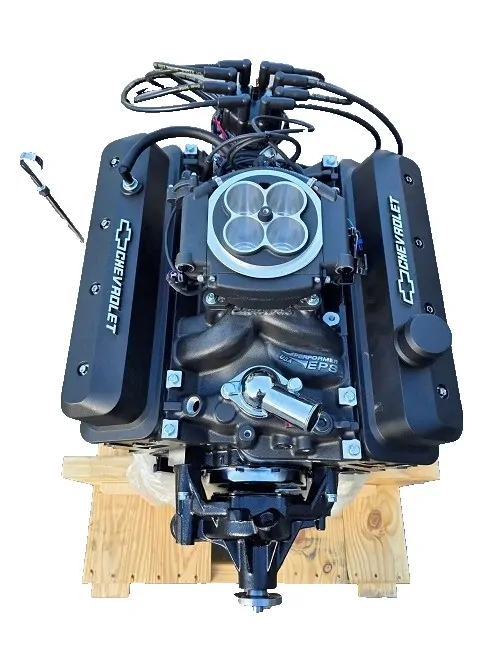

CHEV 350 330HP GM VORTEC 4 BOLT ENGINE WITH SNIPER # CHEV-330-BLK-SNIPER

CHEV 350 330HP GM VORTEC 4 BOLT ENGINE WITH SNIPER # CHEV-330-BLK-SNIPER

EDELBROCK INTAKE MANIFOLD

HOLLEY SNIPER

PROFORM RAISED LOGO COVERS

12 MONTHS - 20,000KM WARRANTY

Horsepower ..................... 330 @ 5000 RPM
Torque .......................... 380 Ft. Lbs. @ 3800
Max. Recommended RPM ..... 5500
Compression Ratio ............. 9.1:1
Block ............................ 10105123 Cast iron four bolt with one piece rear main seal
Flexplate..........................168 teeth 11"
Crankshaft ...................... 14088527 Nodular cast iron
Connecting Rods ............... 10108688 PM steel
Pistons .......................... 12361371 Cast aluminum
Piston Rings .................... 14089025
Timing Chain ................... 14087014
Cylinder Heads ................. 12558060 Cast Iron 64cc Vortec combustion chambers
Intake Valves ................... 10241743 1.94"
Exhaust Valves .................. 12550901 1.50"
Valve Springs ................... 10212811
Rocker Arms .................... 10089648 1.5 ratio
Valve Lash ...................... Zero
Ignition Timing .................. 10 BTDC @ 700 RPM

cam specs .................. hyd roller
