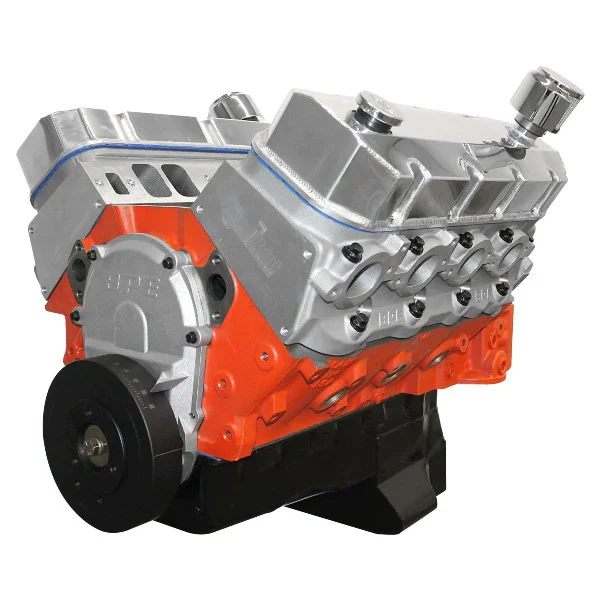

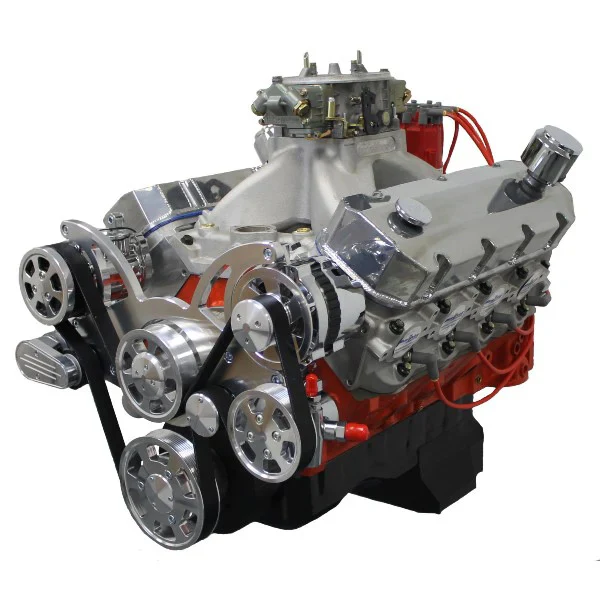

BluePrint Engines Chev 632 Big Block 815HP Stroker Crate Engine # PS6320CTC
632 CI ProSeries Stroker Crate Engine | Big Block GM Style | 10.3L | Base Dressed Longblock with Carburetor
- HP & Torque: 815 HP / 775 FT LBS
Compression Ratio: 11.0:1
Aluminum Heads
Hydraulic Roller Cam
Forged Crank
Forged Pistons
BLOCK:
- NEW BluePrint Cast Iron Block
- Manufactured and Machined in the USA!
- 4-Bolt Main
- 4.600" Bore
- 1-Piece Rear Main Seal
- Mech fuel pump provision: Yes
- Tall Deck (Cyl Deck is Approx .400 taller / wider than oem block)
ROTATING ASSEMBLY:
- New BluePrint Forged Crankshaft
4.750" Stroke
Forged H-beam 6.635" connecting rods
Forged Pistons
Internal
CYLINDER HEADS:
- BluePrint Aluminum Cylinder Heads -PS8012
- 119cc chamber
- 2.30" intake/1.88" exhaust valves
- 358cc intake/125cc exhaust runners
- Cylinder heads feature a .300 in. raised exhaust port vs an OEM casting.
- Must verify clearance of exhaust,shift linkage, steering components etc. before ordering.
CAM SPECS:
- Cam Type: Roller
.698 / .698 Lift
272 / 282 duration @ .050 - 110 degree LSA
ALSO INCLUDES:
- Valve covers, oil pan and timing cover
Harmonic balancer - 1250 CFM Carburetor
- Intake Manifold
- Pro Billet Distributor

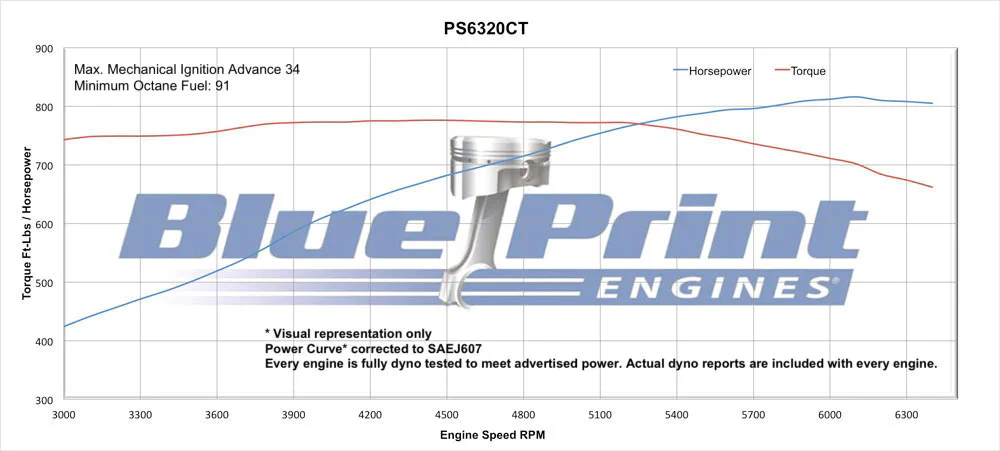

Dyno test results shipped with engine
$26,325.02
BluePrint Engines Chev 632 Big Block 815HP Stroker Crate Engine # PS6320CTC—
$26,325.02
Description
632 CI ProSeries Stroker Crate Engine | Big Block GM Style | 10.3L | Base Dressed Longblock with Carburetor
- HP & Torque: 815 HP / 775 FT LBS
Compression Ratio: 11.0:1
Aluminum Heads
Hydraulic Roller Cam
Forged Crank
Forged Pistons
BLOCK:
- NEW BluePrint Cast Iron Block
- Manufactured and Machined in the USA!
- 4-Bolt Main
- 4.600" Bore
- 1-Piece Rear Main Seal
- Mech fuel pump provision: Yes
- Tall Deck (Cyl Deck is Approx .400 taller / wider than oem block)
ROTATING ASSEMBLY:
- New BluePrint Forged Crankshaft
4.750" Stroke
Forged H-beam 6.635" connecting rods
Forged Pistons
Internal
CYLINDER HEADS:
- BluePrint Aluminum Cylinder Heads -PS8012
- 119cc chamber
- 2.30" intake/1.88" exhaust valves
- 358cc intake/125cc exhaust runners
- Cylinder heads feature a .300 in. raised exhaust port vs an OEM casting.
- Must verify clearance of exhaust,shift linkage, steering components etc. before ordering.
CAM SPECS:
- Cam Type: Roller
.698 / .698 Lift
272 / 282 duration @ .050 - 110 degree LSA
ALSO INCLUDES:
- Valve covers, oil pan and timing cover
Harmonic balancer - 1250 CFM Carburetor
- Intake Manifold
- Pro Billet Distributor
Dyno test results shipped with engine
