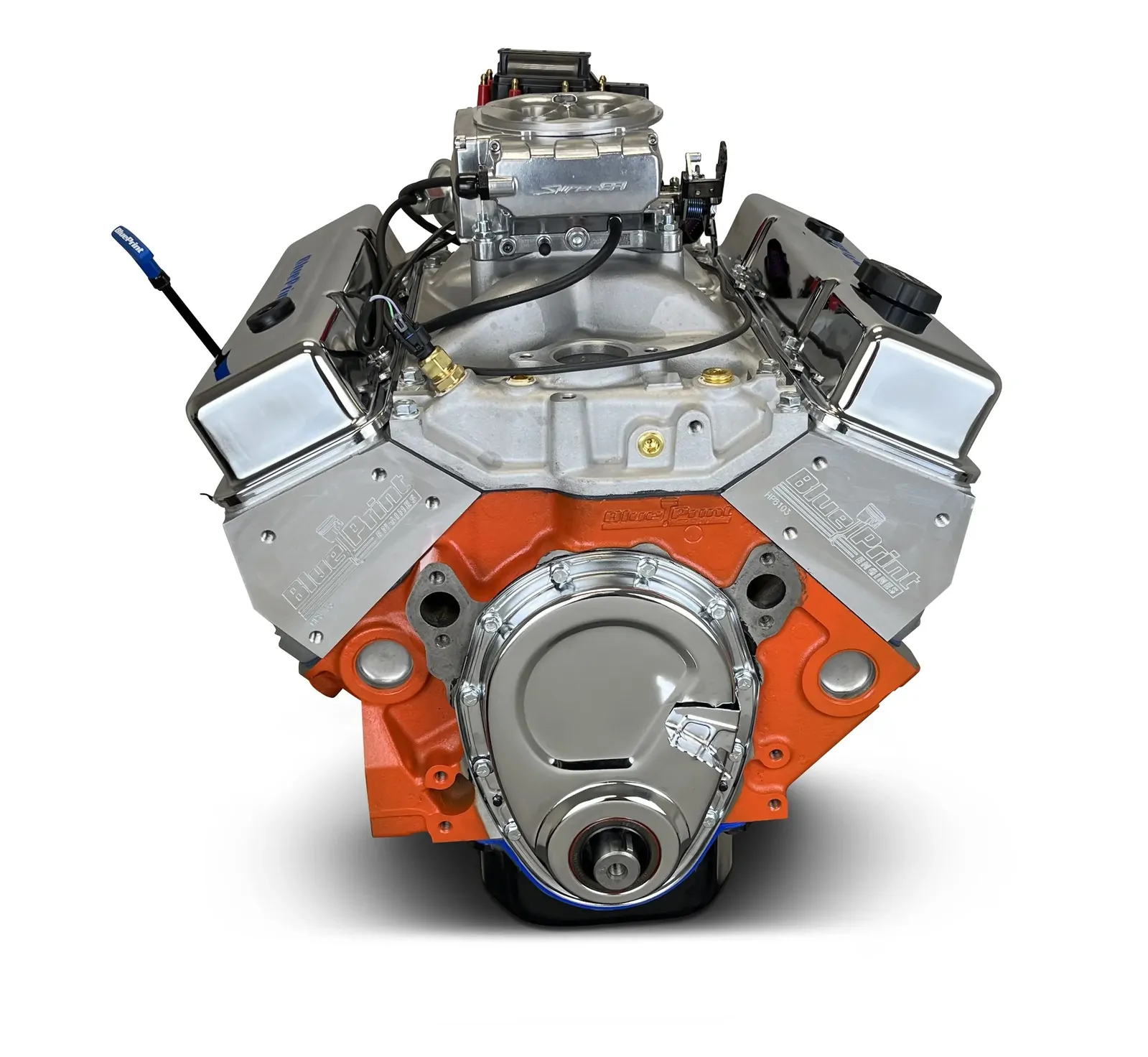

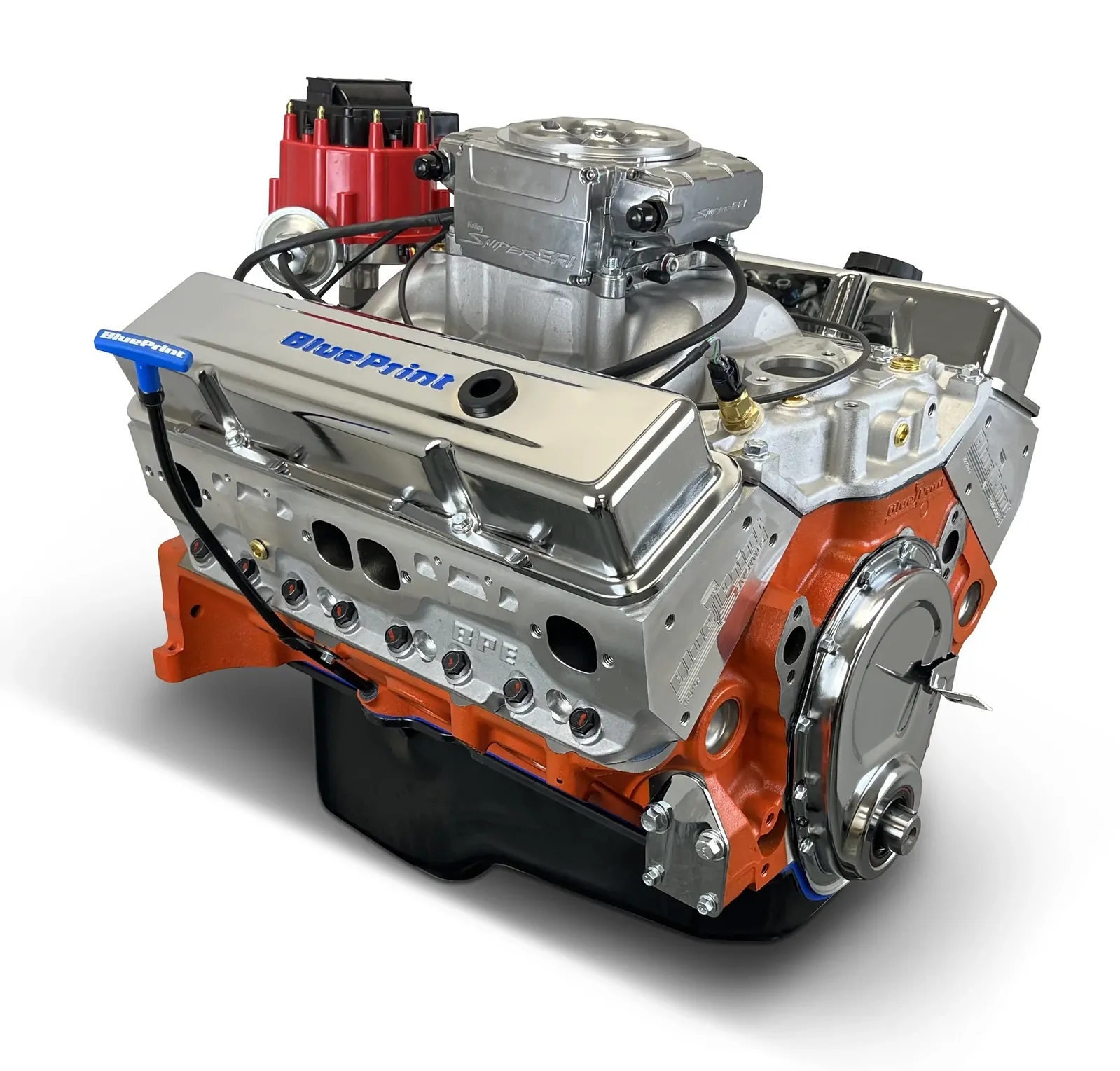

GM Small Block Compatible 400 c.i. Engine - 500 Horsepower - Base Dressed - Fuel Injected

SKU: BP4002CTF

Horsepower & Torque: 500 Horsepower / 510 ft. lbs. Torque

Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads

Compression Ratio: 10.3:1

Camshaft: Hydraulic Roller Cam - .555 Intake / .576 Exhaust Lift and 236 Intake / 242 Exhaust Duration @.050-1100 LSA

Pistons: Forged

Crankshaft: Forged Crank - 3.750" Stroke and 5.700" Rods

Description:

• Horsepower & Torque: 500 Horsepower / 510 FT. LBS. Torque
• Compression Ratio: 10.3:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Forged Crank
• BluePrint Engines Forged Pistons

Block:

• BluePrint Engines High Strength Cast Iron Block
• Manufactured and Machined in the USA!
• Drilled and Tapped for Clutch Linkage
• Mech Fuel Pump Provision: Yes
• Passenger Side Dipstick
• 1-Piece Rear Main Seal
• 4-Bolt Main
• 4.125" Bore

Rotating Assembly:

• BluePrint Forged Crankshaft
• 3.750" Stroke
• 5.700" Connecting Rods w/ 150,000 PSI Bolts
• Forged Pistons
• Internally Balanced Front - Externally Balanced Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - HP8103
• 64cc Chamber
• 2.08" Intake /1.60" Exhaust Valves
• 220cc Intake / 67cc Exhaust Runners

Cam Specs:

• Hydraulic Roller
• .555 Intake / .576 Exhaust Lift
• 236 Intake / 242 Exhaust Duration
• @ .050-110 Degree Lobe Separation

Ignition Timing:

• 10-160 Initial and Total Timing 32-340 at 3500 RPM

Also Includes:

• Intake Manifold Dual Plane, Satin Aluminum - BPP350VINT
• Holley Sniper 2 EFI System - BPP550-510-3XX
• HEI Ready Run Distributor - BPP350RBK
• Valve Covers - BPP9518
• Timing Cover
• Oil Pan
