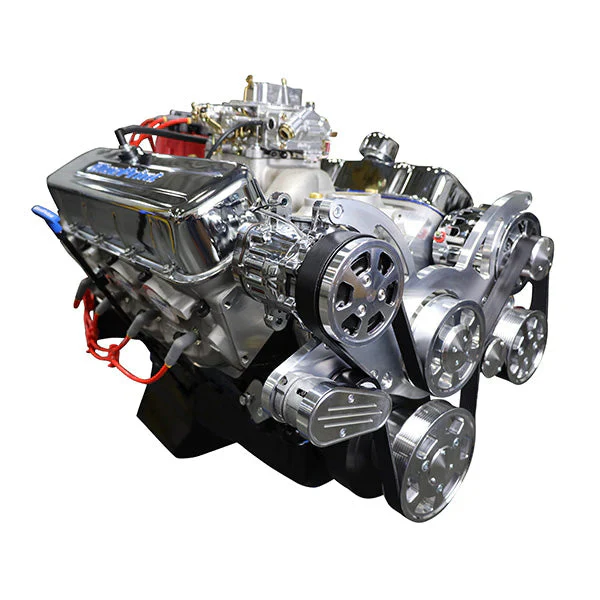

BluePrint Engines Chev 496 Crate Engine With Wraptor Kit# BP4967CTCK

• HP & Torque: 600 HP / 568 FT LBS
  Compression Ratio: 10.1 to 1
  Aluminum Heads
  Hydraulic Roller Cam
  Forged Crank
  Hypereutectic Pistons

BLOCK:

• NEW BluePrint Cast Iron Block, 454 BBC
  Manufactured and Machined in the USA!
  4-Bolt Main
  4.250" Bore
  1-Piece Rear Main Seal
  Mech fuel pump provision: Yes
  Standard Deck

ROTATING ASSEMBLY:

• New BluePrint Forged Crankshaft
  4.250" Stroke, Bored .060" over
  6.135" connecting rods w/ 150,000 psi bolts
  Hypereutectic pistons
  External

CYLINDER HEADS:

• BluePrint Aluminum Cylinder Heads - PS8013
  119cc chamber
  2.30" intake/1.88" exhaust valves
  316cc intake/124cc exhaust runners
• Cylinder heads feature a .300 in. raised exhaust port vs an OEM casting.
• Must verify header/exhaust clearance

CAM SPECS:

• Cam Type: Roller
  .647 Intake .647 Exhaust
  248 Intake / 254 Exhaust duration
  @ .050 - 112 degree lobe separation

IGNITION TIMING:

• 10-160 initial and total timing 32-340 at 3500 RPM

ALSO INCLUDES:

• Intake Manifold single plane, satin aluminum
  850cfm Carburetor
  Valve covers, oil pan and timing cover

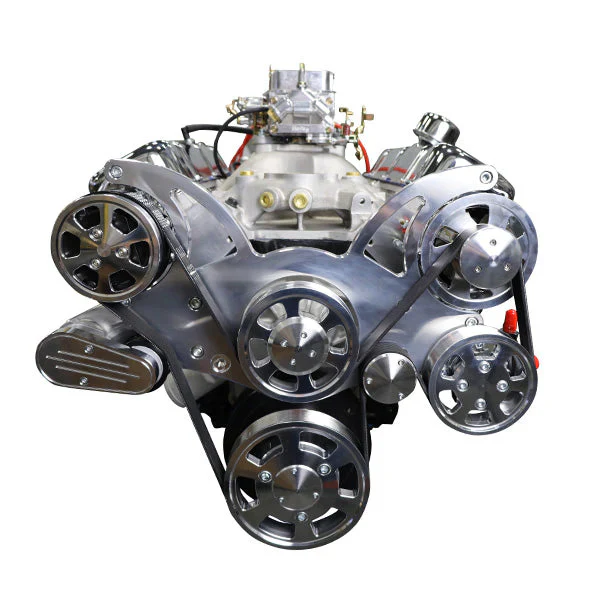

• Installed polished complete front accessory drive system with A/C, P/S, WP, all belts and pulleys.

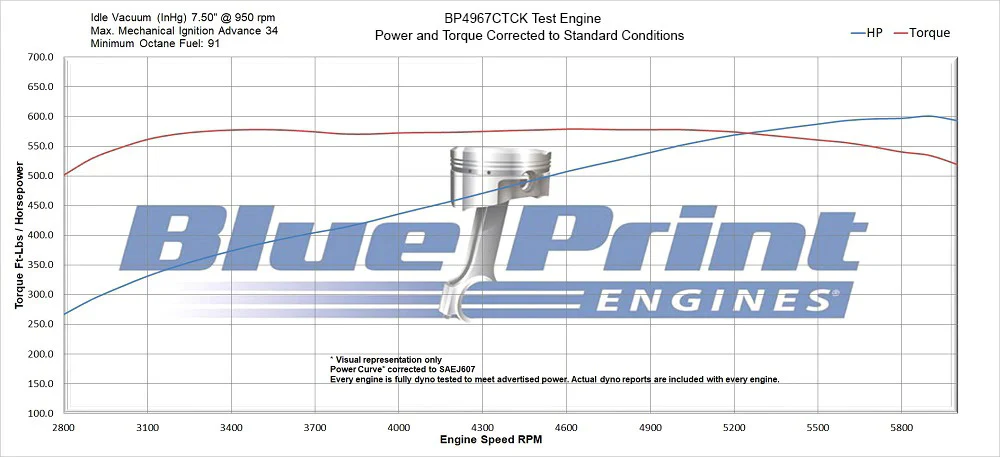

• Dyno test results shipped with engine
